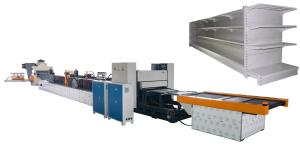

Supermarket Storage Rack Panel Roll Forming Machine
Supermarket Storage Rack Panel Roll Forming Machine is widely used for cold roll forming of storage shelves, supermarket shelves, heavy-duty shelves and other profiles.ZTRFM metal shelf rack panel forming machine adopts integrated design, integrating multiple processes in one machine, which greatly improves the production efficiency. Meanwhile, it is designed with advanced numerical control technology, and the machine is able to accurately control the size and shape of shelf laminates.
The use of shelf panel equipment to produce shelf profiles, which is low production cost, high efficiency and environmentally friendly materials, can be combined with production needs to manufacture automated production equipment, saving labor, making enterprises more competitive in the fierce market competition.
ZTRFM shelf equipment consists of: discharging, leveling, feeder, punching, forming machine, fixed length cutting, receiving platform, electric control box (PLC control), etc.
Shelf Panel Making Machine Production Process
Decoiler - leveling - servo feeding - punching system - bilateral roller rolling forming - hydraulic automatic cutting and bending - receiving table - automatic welding
Supermarket Storage Rack Panel Roll Forming Machine
ZTRFM Unique Design
1. This shelves panel automatic production line can produce different specifications of the board, integrates the numerical control to complete the punching, shearing, cold roll forming and folding process, greatly saving labor and improving work efficiency, replacing the traditional CNC punching machine, CNC bending machine, CNC shearing machine Combined function.
2. Different specifications are completed by numerical control. Punching different holes, you can choose to complete the stamping die. The roller press is adjustable by a combination of two machines.
ZTRFM Shelving Equipment Features
1.The machine adopts PLC full-range intelligent control, and the automation program is high, safe and efficient.
2.The forming frame is welded using high strength channel steel. High strength and long service life.
3.The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
4.The material of the molding die is GCr15, quenching treatment, hardness: HRC 56-62 °C.
5.The transmission structure is gearbox transmission or chain transmission.
Final Product Display
Reference drawings of different metal shelf
Mainly Include
- Shelf post roll forming equipment
- Shelf rack panel roll forming machine
- Shelf beam (Box beam) cold roll forming machine
- Shelf step beam (P beam) automatic roll forming production line
- Shelf reinforcement rib roll forming equipment
- Shelf label slot roll forming production equipment
- Shelf universal Angle steel roll forming production equipment
- Shelf bullet beam cold bending forming machine
